Far-Infrared Graphene Radiation & Thermal Delivery Mechanism
From Electrothermal Conversion to Resonant Water Absorption and Microcirculation Support
From Electrical Input to Lattice-Scale Thermal Radiation
XIHE graphene far-infrared technology begins with engineered graphene-based functional materials. The continuous, highly conductive honeycomb lattice provides low sheet resistance and uniform current distribution.
When a voltage is applied, electron-phonon scattering in the graphene lattice efficiently converts electrical energy into thermal energy and far-infrared radiation. Under the test method referenced in YB/T 6493-2026, XIHE graphene film recorded an electrical-to-radiative thermal conversion efficiency of 68%, exceeding the ≥65% benchmark. Temperature non-uniformity was measured at 5.4°C, below the applicable limit of 6.4°C.
Emission in the 5–15 μm Biological Window
Unlike traditional metallic coil heaters that emit predominantly near the heater surface via high-temperature conduction, graphene heating films emit a broad far-infrared spectrum concentrated in the 5–15 μm range at mild operating temperatures.
The spectral emission has a characteristic peak around 9.4 μm. Under standardized test conditions, XIHE graphene film demonstrated normal spectral emissivity of 0.88 (third-party test report WT-HW-00529). This spectrum closely matches the human body’s natural thermal radiation curve and the absorption characteristics of water-rich biological tissue.

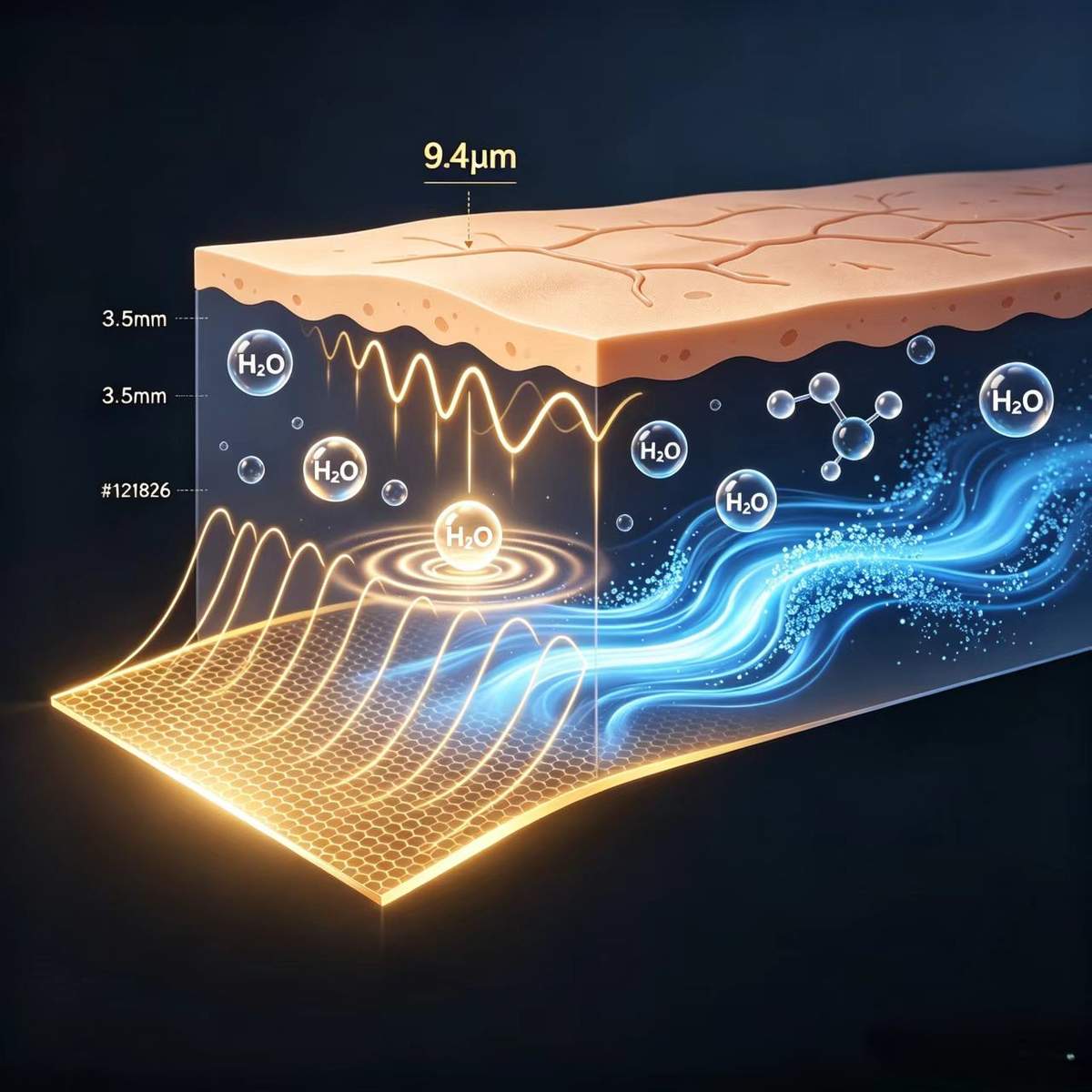

Resonant Absorption by Water Clusters in Tissue
Human tissue consists of 60–70% water. Liquid water exhibits strong absorption bands in the mid- to far-infrared spectrum, particularly the 6 μm bending mode and the 8–14 μm libration/intermolecular bands.
When 5–15 μm photons strike tissue, energy is absorbed by hydrogen-bonded water clusters. Intermolecular bonds undergo vibrational and rotational excitation, and radiant energy is distributed as uniform, volumetric thermal energy across superficial tissue layers rather than as surface-only hot spots.
From Localized Warming to Microcirculation Support
As radiant heat accumulates uniformly beneath the skin surface, the body responds through normal thermoregulatory pathways. Local vascular smooth muscle relaxes via thermal feedback mechanisms, the microvascular lumen expands, and perfusion in the warmed area increases.
This is a physiological response to localized warming, not a clinical treatment outcome. Far-infrared photons in the 5–15 μm range are heavily absorbed in superficial water layers; the “deep” warming effect is achieved because resonant absorption generates gentle thermal energy that is then conducted into deeper tissue layers via microvascular blood circulation.
Clarifying the Science: Far-Infrared vs Near-Infrared
| Specifications | Near-Infrared / PBM (600–1064 nm) | Far-Infrared Graphene (5–15 μm) |
|---|---|---|
| Primary Mechanism | Photochemical activation (electronic transition) | Photothermal / resonant vibrational absorption |

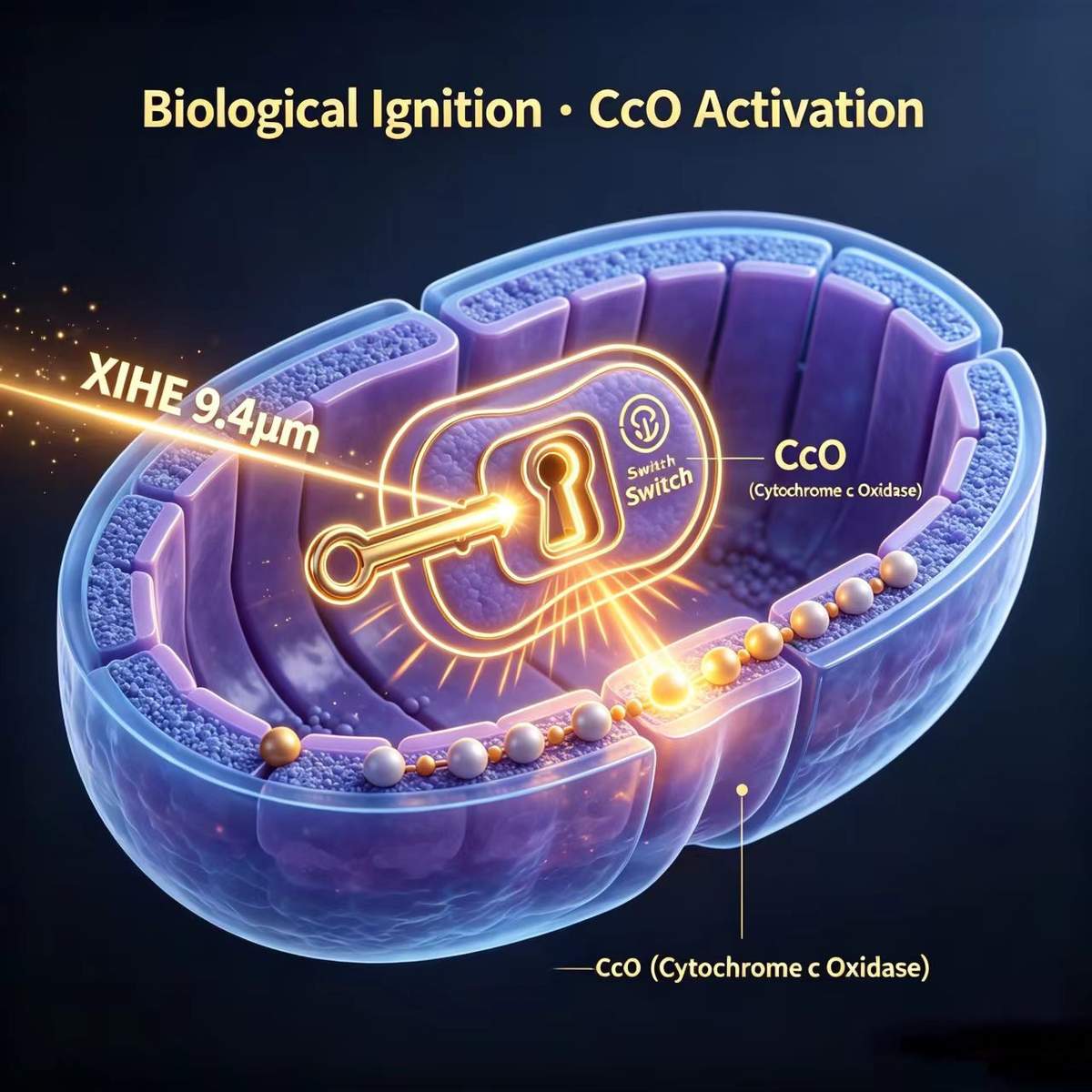

| Target Chromophore | Mitochondrial cytochrome c oxidase (CcO) | Cellular water molecules & biological macromolecules |
| Energy Delivery | High photon energy, targeted cellular signaling | Radiant thermal flux, volumetric heating |
| Standard Governing | Laser / LED photobiomodulation guidelines | GB/T 30127 (textile FIR), MIIT 2024-0923T-YB |
| Primary Effect | Cellular ATP synthesis up-regulation | Deep-tissue thermal relaxation & microcirculation |
Claims Grounded in Recognized Radiometric Standards
The mechanism starts with measurable material performance. The values below are organized by evidence tier: film-level third-party testing, standard-validation testing, and finished-product production testing.
| Metric | Regulatory / Standard Baseline | XIHE Result | Test Method / Source |
|---|---|---|---|
| Far-Infrared Emissivity | ≥ 0.88 (GB/T 30127) | 0.88 (film) / 0.95 (apparel) | WT-HW-00529 / Anta production test |
| Radiation Temperature Rise | ≥ 1.4°C (GB/T 30127) | +2.3°C (apparel) | Anta 560k garment production test |
| Wavelength Band | 5–14 μm (GB/T 30127) | 5–15 μm (peak ~9.4 μm) | FTIR radiometric evaluation |
| Electrical-to-Radiative Conversion | ≥ 65% (YB/T 6493-2026) | 68% | YB/T 6493-2026 standard validation |
| Temperature Non-Uniformity | ≤ 6.4°C (10% of Tavg) | 5.4°C | XIHE internal engineering test |
Graphene vs Traditional Heating Architectures
The same material properties that produce controlled far-infrared emission also change how heat is distributed, transferred, and sustained in a finished product.
| Parameter | XIHE Far-Infrared Graphene | Traditional Metal Wire (Nichrome) | Carbon Fiber Heating |
|---|---|---|---|
| Emission Spectrum | 5–15 μm concentrated | Broad/uncontrolled thermal radiation | 6–18 μm broad spectrum |
| Surface Emissivity | 0.88–0.95 (verified) | 0.20–0.40 (indicative) | 0.75–0.85 (indicative) |
| Temperature Uniformity | ±1.5°C planar (measured) | High localized wire peaks (hot spots) | ±5.0–10.0°C |
| Heat Transfer Mode | Radiant FIR + gentle conduction | Almost entirely surface conduction | Conduction + partial radiation |
| Flexibility & Fatigue | 10,000 cycles (verified) | Prone to point-breakage under bending | Moderate brittleness |
Nichrome and carbon fiber ranges are indicative material properties from standard engineering references, not XIHE test results.
Standards, Validation, and Production Evidence
These references inform the physical/thermal mechanism discussion. They do not establish clinical outcomes.
The Mechanism Starts With Measurable Material Performance
Before discussing biological pathways, the underlying technology must first demonstrate controlled and reproducible physical performance. The values below are measured under standardized or industry-standard-development test conditions.
Scientific & Regulatory Disclaimer
This page provides technical and physical explanations of far-infrared emission and radiant heat transfer for engineering, research, and OEM evaluation. XIHE technology products and components are designed for thermal management, functional apparel, and general wellness applications. They are not medical devices and are not intended to diagnose, treat, cure, or prevent any disease or medical condition. Statements regarding microcirculation improvement and thermal retention reflect physiological responses to localized warming and do not constitute clinical efficacy claims.
Questions About Mechanism & Validation
How does far-infrared graphene transfer heat to the human body?
Far-infrared graphene emitters produce broadband infrared radiation concentrated between 5 and 15 μm. Because water molecules in superficial and dermal tissues strongly absorb within this band, radiant energy is absorbed and converted into gentle thermal energy, promoting localized vasodilation and tissue warming without conductive hot spots.
Is the 5–15 μm far-infrared mechanism the same as near-infrared photobiomodulation (600–900 nm)?
No. Near-infrared (600–900 nm) and red light operate primarily through electronic photo-activation of mitochondrial chromophores such as cytochrome c oxidase. Far-infrared (5–15 μm) operates through rotational-vibrational excitation of water clusters and thermal radiant transfer, governed by Planck radiation law and water absorption spectra.
What standards verify far-infrared graphene emission?
In China, far-infrared emission is evaluated under national standards such as GB/T 30127-2013 (emissivity ≥ 0.88, temperature rise ≥ 1.4°C) and the Graphene Flexible Electrothermal Heating Film industry standard (Plan No. 2024-0923T-YB, MIIT). XIHE film data are additionally supported by third-party report (2022)WT-HW-00529 and production-scale apparel testing with Anta.
What does "resonance" mean in far-infrared graphene?
In this context, resonance refers to matching the emission wavelength of the source (5–15 μm) to the natural molecular vibrational and rotational absorption frequencies of water clusters (O–H bonds) in tissue. This impedance matching maximizes radiant energy absorption and conversion to thermal energy.
Does far-infrared radiation penetrate deep into human tissue?
Far-infrared photons (5–15 μm) are heavily absorbed in the superficial water layers of the skin. The deep warming effect is achieved because resonant absorption generates gentle thermal energy without skin scorching, which is then conducted into deeper tissue layers via microvascular blood circulation.
How is XIHE's mechanism verified?
XIHE evaluates thermal and radiant mechanisms through third-party testing (WT-HW-00529), standard-development validation with Jiageng Innovation Laboratory under YB/T 6493-2026, and production-scale apparel testing with Anta. Measurement methods include FTIR spectrometry, thermal imaging, and standardized far-infrared irradiance tests.
